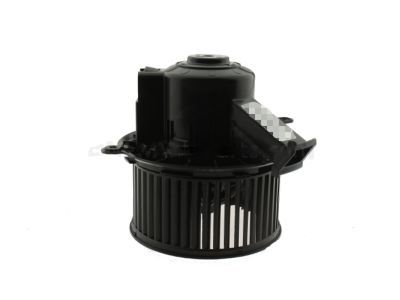

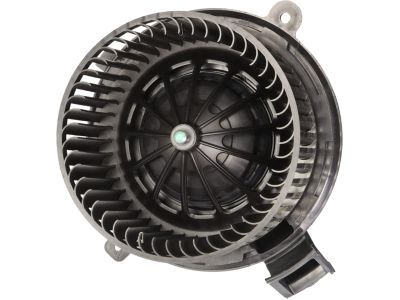

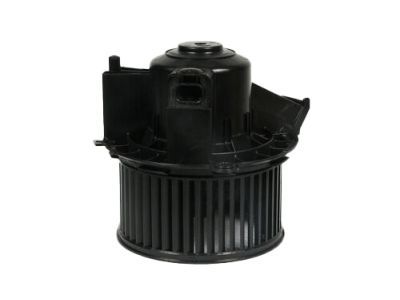

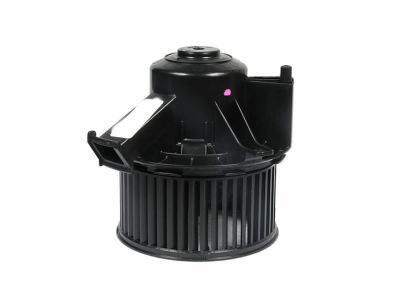

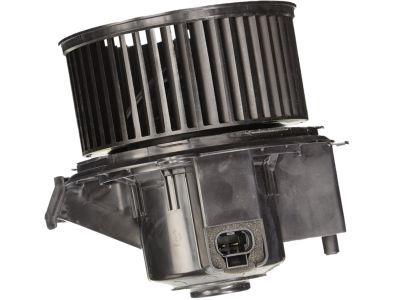

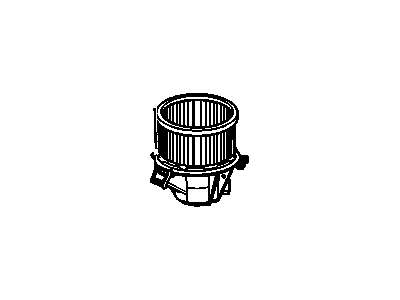

Buick 22961461 Motor Assembly, Blower (W/ Impeller)

You can Select Your Vehicle to check if 22961461 fits your vehicle.

Begin by removing the passenger side rear quarter trim panel. Disconnect the electrical connectors from the blower motor resistor/module and remove the two screws to take out the rear auxiliary resistor/module from the blower housing below the rear auxiliary blower motor. Installation is the reverse of removal.

To remove the front blower motor resistor/module, start by removing the passenger's side insulator panel under the glove box in the passenger compartment. Then, remove the resistor/module retainers and take out the resistor/module from the blower housing located to the left of the blower motor. Disconnect the electrical connectors from the blower motor resistor/module. For installation, simply reverse the removal steps. To remove the rear auxiliary blower motor resistor/module, begin by removing the passenger side rear quarter trim panel. Disconnect the electrical connectors from the blower motor resistor/module and remove the two screws to take out the rear auxiliary resistor/module from the blower housing below the rear auxiliary blower motor. Installation is the reverse of removal. For front blower motor removal, work under the glove box in the passenger compartment to remove the passenger's side insulator panel. Disconnect the blower motor electrical connector, remove the mounting screw, and take out the blower motor assembly. Remove the blower motor fan retaining clip and detach the blower motor fan from the motor. Installation is the reverse of removal. To remove the rear auxiliary blower motor, remove the third-row seat and the passenger's side rear quarter trim panel. Disconnect the rear auxiliary blower motor electrical connector, remove the three blower motor mounting screws, and remove the blower motor assembly. Remove the blower motor fan retaining clip and detach the blower fan from the motor. Installation is the reverse of removal.
