Differential Carrier/Front Axle Ring Gear fit your 1999 Chevrolet Silverado 1500 4WD

Currently shopping for

1999 Chevrolet Silverado 1500 4WD

Change Vehicle

Categories Close X

Currently selected

Front Axle, Front Suspension, Steering

Other Categories

Body Mounting, Air Conditioning, Audio/Entertainment

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cab And Body Structure, Mirrors, Doors, Trim, Seat Belts, Wipers

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers, Fascias

Front End Sheet Metal, Heater

Fuel System, Exhaust, Emission System

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Body Structure, Moldings & Trim, Cargo Stowage

Starter, Generator, Ignition, Electrical, Lamps

Transfer Case

Transmission - Automatic

Transmission - Manual

How to use OE catalog

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

88891763
NUT, Propeller Shaft Pinion Flange, NUT,FRONT DIFFERENTIAL DRIVE PINION GEAR YOKE(M10)
- Replaced By: 09783762
$12.60
1
Add To Cart

25892279
VENT, Transfer Case, VENT,TRANSFER CASE(VENT STEM W/CAP)
$4.51 $2.87
5
Add To Cart

12479390
CONNECTOR, Front Axle and Axle Center, CONNECTOR,FRONT DIFFERENTIAL CARRIER VENT HOSE
$63.14 $36.92
1
Add To Cart

15588383
GASKET, Front Axle and Axle Center, GASKET,FRONT DIFFERENTIAL CARRIER OIL FILLER PLUG(24 OUTSIDE DIAMETER)(14 INSIDE DIAMETER)(WASHER)(FLAT)(2 THICK)(PLASTIC)(FITS BOLT STYLE ONLY)(4.195)
$10.77 $6.85
1
Add To Cart

15588312
LOCK, Differential Bearing Adjusting, LOCK,FRONT DIFFERENTIAL BEARING ADJUSTER NUT
- Require Quantity: 02
- Package Quantity: 10
$1.90 $1.14
10
Add To Cart

23312178
BEARING, Differential Side Gear, BEARING,FRONT DIFFERENTIAL(INCLUDES CUP AND CONE)(TIMKEN, LM501349-LM501314, 41.28MM INSIDE DIAMETER X 73.42MM OUTSIDE DIAMETER X 21.43MM THICK)(FRONT AXLE)(INNER)(1.625/2.891 DIAMETER)
- Require Quantity: 02
- Package Quantity: 1
$77.84 $41.26
1
Add To Cart

15588376
SHIM, Front Axle, SHIM,FRONT DRIVE AXLE CLUTCH GEAR
$5.51 $3.50

88967027
YOKE, Propeller Shaft Pinion, YOKE,FRONT DIFFERENTIAL DRIVE PINION GEAR
$118.46 $76.07
1
Add To Cart

12479320
HOUSING, Front Axle and Axle Center, HOUSING,FRONT DRIVE AXLE INNER SHAFT
$475.28 $300.71

15962663
BUSHING, Differential Carrier, BUSHING,FRONT DIFFERENTIAL CARRIER
- Require Quantity: 02
- Package Quantity: 1

12479213
FORK, Front Drive Axle Shifter/Lock, FORK,FRONT DRIVE AXLE CLUTCH(FORK 12479213 INCLUDES FORK/SHAFT.SEPERATE SHAFT NOLONGER NEEDED)
$13.40 $8.40
1
Add To Cart

15588371
SPRING, Front Drive Axle Shifter/Lock, SPRING,FRONT DRIVE AXLE CLUTCH FORK INNER
$19.62 $12.30
1
Add To Cart

19121908
SHAFT, Front Axle, SHAFT,FRONT DRIVE AXLE CLUTCH(INCLUDES BEARING)
$357.16 $215.79
1
Add To Cart

25872305
BOLT, Pinion DIFFERENTIAL Shaft Lock, BOLT,DIFFERENTIAL PINION GEAR SHAFT LOCK(.3X18X30, 12.7THD)(*KIT2)
$8.23 $4.97
1
Add To Cart

12479162
SPACER, Front Axle, SPACER,FRONT DIFFERENTIAL DRIVE PINION GEAR BEARING(.062-.068" THICK)(*KIT1)(5.453)
$17.65 $10.65
1
Add To Cart

12479162
SPACER, Differential Rear Pinion Bearing, SPACER,FRONT DIFFERENTIAL DRIVE PINION GEAR BEARING(.062-.068" THICK)(*KIT1)(5.453)
$17.65 $10.65
1
Add To Cart

15588350
WASHER, Differential Pinion Thrust, WASHER,FRONT DIFFERENTIAL PINION GEAR THRUST(PART OF 23)(CURVE STYLE WASHER)(51.6MM O.D.,20.27MM INSIDE DIAMETER)(*KIT2)
- Require Quantity: 02
- Package Quantity: 5
$3.20 $1.93
5
Add To Cart

84526163
GEAR KIT, Differential Side With Pinion, GEAR KIT,FRONT DIFFERENTIAL SIDE & PINION(INCLUDES 22,24,26,28-30)
$461.71 $270.02
1
Add To Cart

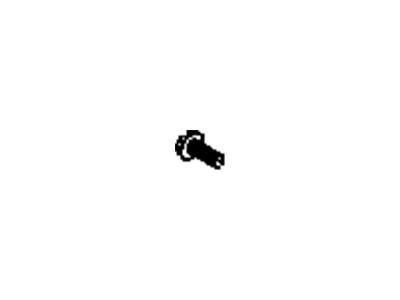

11516873
BOLT, HEXAGON, BOLT,HEXAGON HEAD & CONICAL SPRING WASHER, M14X2X100(FRONT DIFFERENTIAL CARRIER)
- Require Quantity: 02
- Package Quantity: 1
$131.82 $82.65
1
Add To Cart

11610549
BOLT, Ring Gear, BOLT,REAR DIFFERENTIAL RING GEAR(8.625 RING GEAR)(7/16-20)(*KIT1)
- Require Quantity: 10
- Package Quantity: 1
$7.52 $4.72
1
Add To Cart

12471590
SEAL, Differential Drive Pinion Shaft Bearing, SEAL,FRONT DIFFERENTIAL DRIVE PINION GEAR(ORDER TOGETHER WITH 88891763)
$42.21 $24.68
1
Add To Cart

SHIM KIT, Differential Rear Pinion Bearing

1394893
SHIM KIT, DIFFERENTIAL DRIVE PINION GEAR BEARING(.025-.029" THICK)(8.25)
$37.27 $24.33
1
Add To Cart
1394894
SHIM KIT, DIFFERENTIAL DRIVE PINION GEAR BEARING(.030-.034" THICK)(8.25)
$39.87 $24.74
1
Add To Cart
1394895
SHIM KIT, DIFFERENTIAL DRIVE PINION GEAR BEARING(.035-.039" THICK)(8.25)
$42.62 $27.82
1
Add To Cart
26043991
SHIM KIT, DIFFERENTIAL DRIVE PINION GEAR BEARING(.040-.044" THICK)(8.25)
$36.49 $22.05
1
Add To Cart
26043992
SHIM KIT, DIFFERENTIAL DRIVE PINION GEAR BEARING(.045-.049" THICK)(8.25)
$35.57 $21.50
1
Add To Cart
1394892
SHIM KIT, DIFFERENTIAL DRIVE PINION GEAR BEARING(.020-.024" THICK)(8.25)

15801501
CASE, Front/Rear Differential and Planet, CASE,FRONT DIFFERENTIAL(INCLUDES 26,29)(LESS INTERNAL GEARS)
$603.79 $378.59
1
Add To Cart

GEAR KIT, Ring and Pinion(Not Sold Separately)
19257737
GEAR KIT, FRONT DIFFERENTIAL RING & DRIVE PINION(INCLUDES 21,25,46,52)
Fitting Vehicle Options: K1(GT4)
Replaced By: 23114025
$1153.54 $723.28
1
Add To Cart
23114158
GEAR KIT, FRONT DIFFERENTIAL DRIVE PINION(INCLUDES 21,25,46,52)
- Fitting Vehicle Options: K1(GT5)

19257737
GEAR KIT, Front Axle, GEAR KIT,FRONT DIFFERENTIAL RING & DRIVE PINION(INCLUDES 21,25,46,52)(5.529)
- Replaced By: 23114025
$1153.54 $723.28
1
Add To Cart

22761722
SEAL, Front Axle, SEAL,FRONT DRIVE AXLE INNER SHAFT
- Require Quantity: 02
- Package Quantity: 1
$38.51 $22.33
1
Add To Cart

23243839
BEARING, Differential Pinion, BEARING,FRONT DIFFERENTIAL DRIVE PINION GEAR INNER(INNER BEARING)
$110.40 $56.64
1
Add To Cart

26033975
SHAFT, Front Drive Axle Shifter/Lock, SHAFT,FRONT DRIVE AXLE CLUTCH FORK
$36.98 $14.51
1
Add To Cart

26036835
BOLT, Front Axle, BOLT,FRONT DRIVE AXLE INNER SHAFT HOUSING(W/WASHER 20 OUTSIDE DIAMETER,M10X1.5X34.9)
- Require Quantity: 05
- Package Quantity: 1
$19.54 $12.24
1
Add To Cart

26041515
BEARING, Front Axle, BEARING,FRONT DRIVE AXLE INNER SHAFT(USED ON ADJUSTER)(O.D. MEASURE 38.1MM.)(USED ON ADJUSTER)(O.D. MEASURE 38.1MM.)
- Require Quantity: 02
- Package Quantity: 1
$54.84 $29.07
1
Add To Cart

26056600
RING, Front Axle, RING,FRONT DRIVE AXLE INNER SHAFT RETAINER
- Location: Driver Side
$14.38 $9.01
10
Add To Cart

26056600
RING, Front Axle, RING,FRONT DRIVE AXLE INNER SHAFT RETAINER(PART OF 6)
- Location: Driver Side
$14.38 $9.01
10
Add To Cart

26058815
PLUG, Front Axle and Axle Center, PLUG,FRONT DIFFERENTIAL CARRIER OIL DRAIN(M12X1.5)(BOLT HEAD STYLE)
$31.39 $19.94
1
Add To Cart

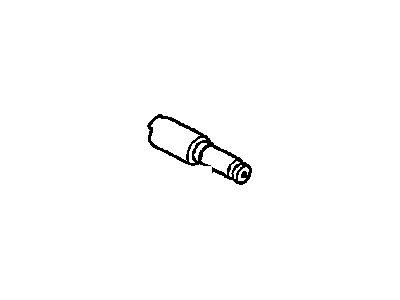

26060073
ACTUATOR, Front Drive Axle Shifter/Lock, ACTUATOR,FRONT DRIVE AXLE(SQUARE PLUG)
$259.27 $151.62
1
Add To Cart

26063838
WASHER, Differential Side Gear Thrust, WASHER,FRONT DIFFERENTIAL SIDE GEAR THRUST(FRONT AXLE)(PART OF 23)(69MM OUTSIDE DIAMETER,40ID,.77THK)(*KIT2)
- Require Quantity: 04
- Package Quantity: 1
$8.06 $4.88
1
Add To Cart

26066885
BEARING, Front Axle and Axle Center, BEARING,DIFFERENTIAL TUBE(USED ON HOUSING)
$58.06 $30.77
1
Add To Cart

26066886
WASHER, Front Drive Axle Shifter/Lock, WASHER,FRONT DRIVE AXLE CLUTCH SHAFT THRUST(FLAT WASHER W/TWO TABS)(5.542)
$7.39 $4.69
1
Add To Cart

360570
PIN, Differential Carrier, PIN,FRONT DIFFERENTIAL HALF CARRIER LOCATING(PART OF 34)(0.685)
$7.02 $4.46
1
Add To Cart

517900
WASHER, Differential Pinion Thrust, WASHER,FRONT DIFFERENTIAL PINION GEAR THRUST(YOKE ATCH)(FRONT/AXL)(.890X1.625X.190)(5.595)
$8.73 $5.98
1
Add To Cart

84526162
SHAFT, Differential Locking, SHAFT,FRONT DIFFERENTIAL PINION GEAR(*KIT2)
$29.86 $16.38
1
Add To Cart

8672354
PLUG, Front Axle and Axle Center, PLUG,FRONT DIFFERENTIAL CARRIER OIL DRAIN(M20X1.5)(4.105)
$29.13 $19.54
1
Add To Cart

9413427
BEARING, Differential Pinion, BEARING,FRONT DIFFERENTIAL DRIVE PINION GEAR OUTER(FRONT AXLE)(INCLUDES CUP & CONE)(TIMKEN)(M88048-M88010)(1 5/16 INCH INSIDE DIAMETER X 2 11/16 INCH OUTSIDE DIAMETER X 7/8 INCH THICK)(W/CUP)(5.447)
$109.76 $37.59
1
Add To Cart

12470318
ADJUSTER, Differential Bearing Adjusting, ADJUSTER,FRONT DIFFERENTIAL BEARING(INCLUDES 19)(INCLUDES INSERT, SLEEVE & NUT STAMPED ZA2)

19149478
CARRIER, Differential, CARRIER,FRONT DIFFERENTIAL(ALSO ORDER 2 OF 22934983 & 2 OF 23484390)(INCLUDES 35)(LESS GEARS)

26013505
SPRING, Front Drive Axle Shifter/Lock, SPRING,FRONT DRIVE AXLE CLUTCH FORK OUTER

26013506
RING, Front Drive Axle Shifter/Lock, RING,FRONT DRIVE AXLE CLUTCH FORK SHAFT RETAINER

26033974
SLEEVE, Front Axle, SLEEVE,FRONT DRIVE AXLE CLUTCH

26058813
SHAFT, Front Axle, SHAFT,FRONT DRIVE AXLE INNER(CODE ZXN)
- Location: Driver Side

26058832
SHAFT, Front Axle, SHAFT,FRONT DRIVE AXLE INNER(CODE: ZXN)
- Location: Passenger Side

26059268
GEAR, Front Axle and Axle Center, GEAR,FRONT DRIVE AXLE CLUTCH(INCLUDES 7)

9439550
HOSE, HOSE,BULK 5/16X25' GM6163M FUEL & OIL RESISTANT

14042602
GASKET, (FRONT DIFFERENTIAL CARRIER OIL DRAIN PLUG)(6.008)

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 1999 Chevrolet Silverado 1500 4WD parts. Parts like Differential Carrier/Front Axle Ring Gear are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 5.3L. Model Code: 1500 EXTENDED CAB LONG BOX, 1500 EXTENDED CAB STANDARD BOX, 1500 REGULAR CAB LONG BOX, 1500 REGULAR CAB STANDARD BOX.
