Automatic Transaxle Forward/Direct Clutch & Related Parts fit your 2004 Pontiac Vibe

Currently shopping for

2004 Pontiac Vibe

Change Vehicle

Categories Close X

Currently selected

Transmission - Automatic

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Body Wiring, Roof Trim

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers, Fascias

Front End Sheet Metal, Heater

Front Suspension, Steering

Fuel System, Exhaust, Emission System

Interior Trim, Front Seat Trim, Seat Belts

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transfer Case

Transmission - Manual

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

How to use OE catalog

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

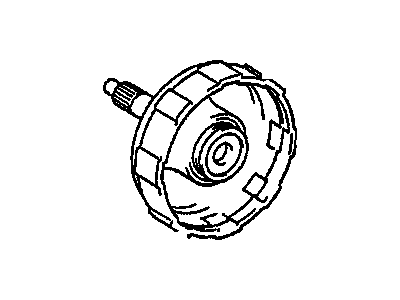

88971850
HOUSING, Transmission Clutch, HOUSING,FWD CLUTCH(W/INPUT SHAFT)
$590.28 $226.08
1
Add To Cart

88971863
HUB, Transmission Clutch, HUB,FWD CLUTCH
$135.26 $49.52
1
Add To Cart

88971865
HOUSING, Transmission Reverse Clutch, HOUSING,REV CLUTCH(INCLUDES SHAFT)
$372.60 $141.30
1
Add To Cart

88971851
PISTON, Transmission Clutch, PISTON,FWD CLUTCH(INCLUDES 5,7)(INCLUDES GUIDE)

88971853
SEAL, Transmission Clutch, SEAL,FWD CLUTCH PISTON INNER(58.9MM INSIDE DIAMETER, 64.1MM OUTSIDE DIAMETER)(2.6MM THICK)(*01,KIT2)

88971854
RING, Transmission Clutch, RING,FWD CLUTCH SPRING RETAINER(39.8MM INSIDE DIAMETER, 47.8MM OUTSIDE DIAMETER)(1.4MM THICK)

88971855
SPRING, Transmission Clutch, SPRING,FWD CLUTCH(INCLUDES SEAT)

88971856
PLATE, Transmission Clutch, PLATE,FWD CLUTCH(COMPOSITE)(*KIT1)
- Require Quantity: 04
- Package Quantity: 1

88971857
PLATE, Transmission Clutch, PLATE,FWD CLUTCH(STEEL)
- Require Quantity: 04
- Package Quantity: 1

PLATE, Transmission Clutch

88971858
PLATE, FWD CLUTCH BACKING(3.00MM THICK)(CODE: NONE)
88971859
PLATE, FWD CLUTCH BACKING(3.20MM THICK)(CODE: 1)
88971860
PLATE, FWD CLUTCH BACKING(3.40MM THICK)(CODE: 2)
88971861
PLATE, FWD CLUTCH BACKING(3.60MM THICK)(CODE: 3)

88971862
RING, Transmission Clutch, RING,FWD CLUTCH BACKING PLATE RETAINER(126.3MM INSIDE DIAMETER, 139MM OUTSIDE DIAMETER)(1.6MM THICK)

88971864
RING, Transmission Input and Turbine Shaft, RING,INPUT SHAFT FLUID SEAL(*KIT2)

88971866
PISTON, Transmission Clutch, PISTON,DIRECT CLUTCH

88971867
SEAL, Transmission Clutch, SEAL,DIRECT CLUTCH PISTON INNER(40.7MM INSIDE DIAMETER, 45.9MM OUTSIDE DIAMETER)(2.6MM THICK)(*01,KIT2)

88971868
SEAL, Transmission Clutch, SEAL,DIRECT CLUTCH PISTON OUTER(103.7MM INSIDE DIAMETER, 109MM OUTSIDE DIAMETER)(3.1MM THICK)(*01,KIT2)

88971869
HOUSING, Transmission Clutch, HOUSING,DIRECT CLUTCH

88971871
SEAL, Transmission Clutch, SEAL,DIRECT CLUTCH HOUSING (O-RING)(42.3MM INSIDE DIAMETER, 47.5MM OUTSIDE DIAMETER)(2.6MM THICK)(*01,KIT2)

88971872
SPRING, Transmission Clutch, SPRING,DIRECT CLUTCH(INCLUDES SEAT)

88971873
RING, Transmission Clutch, RING,DIRECT CLUTCH SPRING RETAINER(31.4MM INSIDE DIAMETER, 38.4MM OUTSIDE DIAMETER)(1.2MM THICK)

88971874
PLATE, Transmission Clutch, PLATE,DIRECT CLUTCH(COMPOSITE)(*KIT1)
- Require Quantity: 03
- Package Quantity: 1

88971875
PLATE, Transmission Clutch, PLATE,DIRECT CLUTCH
- Require Quantity: 03
- Package Quantity: 1

PLATE, Transmission Clutch

88971875
PLATE, DIRECT CLUTCH BACKING(3.00MM THICK)(IDENTIFY: NONE)
88971877
PLATE, DIRECT CLUTCH BACKING(3.20MM THICK)(CODE 1)
88971878
PLATE, DIRECT CLUTCH BACKING(3.40MM THICK)(CODE 2)
88971879
PLATE, DIRECT CLUTCH BACKING(3.60MM THICK)(CODE 3)

88971876
RING, Transmission Clutch, RING,DIRECT CLUTCH BACKING PLATE RETAINER(105.3MM INSIDE DIAMETER, 118MM OUTSIDE DIAMETER)(1.6MM THICK)

88971880
PLATE, Transmission Clutch, PLATE,REV CLUTCH(STEEL)
- Require Quantity: 03
- Package Quantity: 1

PLATE, Transmission Clutch

88971881
PLATE, REV CLUTCH BACKING(3.00MM THICK)(IDENTIFY: NONE)
88971882
PLATE, REV CLUTCH BACKING(3.20MM THICK)(CODE 1)
88971883
PLATE, REV CLUTCH BACKING(3.40MM THICK)(CODE 2)
88971884
PLATE, REV CLUTCH BACKING(3.60MM THICK)(CODE 3)

88971886
RING, Transmission Clutch, RING,REV CLUTCH BACKING PLATE RETAINER(111.3MM INSIDE DIAMETER, 124MM OUTSIDE DIAMETER)(1.6MM THICK)

88971887
HUB, Transmission Clutch, HUB,DIRECT CLUTCH

88971938
BEARING, Transmission Clutch, BEARING,FWD CLUTCH HUB FRONT THRUST(21MM INSIDE DIAMETER, 34.8MM OUTSIDE DIAMETER)(NEEDLE ROLLER)

88971940
RACE, Transmission Clutch, RACE,FWD CLUTCH HUB REAR THRUST BEARING

RACE, Transmission Clutch

88971945
RACE, DIRECT CLUTCH HUB THRUST BEARING(20.3MM INSIDE DIAMETER, 33.8MM OUTSIDE DIAMETER)(INNER)
88971946
RACE, DIRECT CLUTCH HUB THRUST BEARING(23.5MM INSIDE DIAMETER, 37.5MM OUTSIDE DIAMETER)(OUTER)

88971947
BEARING, Transmission Clutch, BEARING,DIRECT CLUTCH HUB THRUST(22.5MM INSIDE DIAMETER, 37.3MM OUTSIDE DIAMETER)(NEEDLE ROLLER)

88971948
BEARING, Transmission Clutch, BEARING,DIRECT CLUTCH HOUSING THRUST(43.4MM INSIDE DIAMETER, 61.7MM OUTSIDE DIAMETER)(NEEDLE ROLLER)

88971954
RING, Transmission Clutch, RING,DIRECT CLUTCH HOUSING FLUID SEAL(*KIT2)
- Require Quantity: 03
- Package Quantity: 1

88972174
SEAL KIT, Transmission Overhaul, SEAL KIT,AUTOMATIC TRANSMISSION SERVICE

88972176
TRANSMISSION KIT, Transmission Overhaul, TRANSMISSION KIT,AUTO(SERVICE OVERHAUL W/PLATE,GASKET,SEAL)(INCLUDES SEAL KIT)

88974510
PLATE, Transmission Clutch, PLATE,REV CLUTCH(COMPOSITE)(*KIT1)
- Require Quantity: 03
- Package Quantity: 1

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2004 Pontiac Vibe parts. Parts like Automatic Transaxle Forward/Direct Clutch & Related Parts are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.8L. Model Code: ALL PURPOSE 4 DOOR, ALL PURPOSE 4 DOOR AWD, ALL PURPOSE 4 DOOR GT.
