Part No. & Part Description

Price & Qty.

Part No. &
Part Description

88974583

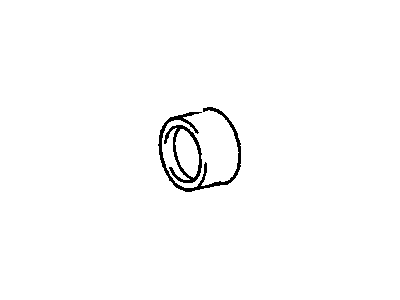

SEAL, Transfer Case, SEAL,TRANSFER CASE REAR EXTENSION(38MM INSIDE DIAMETER, 58MM OUTSIDE DIAMETER)(11MM HIGH)(*01,KIT1)
- Replaced By:

SEAL, Transfer Case
88969972
SEAL, TRANSFER CASE(36MM INSIDE DIAMETER, 59MM OUTSIDE DIAMETER)(OUTER)(DRIVE SHAFT)(10MM HIGH)(*01,KIT1)
Location: Passenger Side
Replaced By:
88975534
SEAL, TRANSFER CASE(55MM INSIDE DIAMETER, 68MM O.D.)(INNER)(DRIVE SHAFT)(8.5MM HIGH)(*01,KIT1)
- Location: Driver Side
- Replaced By:

88969977
EXTENSION, Transfer Case, EXTENSION,TRANSFER CASE REAR(INCLUDES 12,13)(INCLUDES BUSHING)
- Replaced By:

88969979

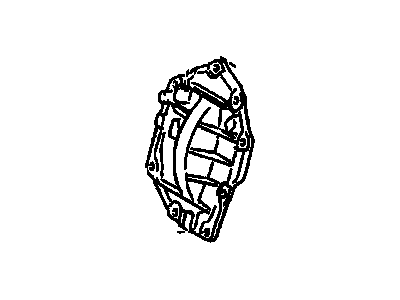

COVER, Transfer Case, COVER,TRANSFER CASE RING & PINION ACCESS(INCLUDES: DEFLECTOR & BOLT)(NO GASKET-USE SEALANT 89020326 US OR 89021188 CANADA)
- Replaced By:

19204917

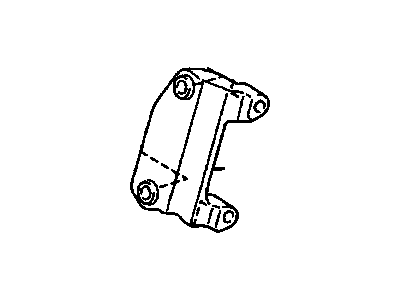

DAMPENER, Transfer Case, DAMPENER,TRANSFER CASE VIBRATION
- Replaced By:
$148.61 $95.98
1
Add To Cart

88972750

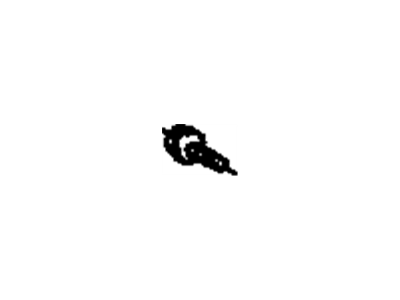

BOLT, Transfer Case, BOLT,TRANSFER CASE REAR EXTENSION(M8X1.25X40)(8.900)
- Require Quantity: 04
- Package Quantity: 1
- Replaced By:
$4.85 $3.15
1
Add To Cart

88975538

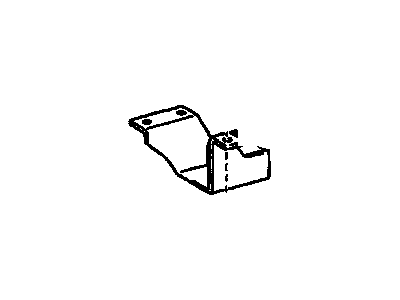

BRACE, Transfer Case, BRACE,TRANSFER CASE
- Location: Passenger Side
- Replaced By:
$145.35 $65.56
1
Add To Cart

19204204
SEAL KIT, Transfer Case, SEAL KIT,TRANSFER CASE(INCLUDES: SEALS,GASKET,& NUT)
- Replaced By:

19205415
PLUG, Transfer Case, PLUG,TRANSFER CASE OIL FILL
- Replaced By:

88969231
DEFLECTOR, Transfer Case, DEFLECTOR,TRANSFER CASE REAR EXTENSION SEAL DIRT(*01)
- Replaced By:

STUD, Transfer Case
88969232
STUD, TRANSFER CASE(M12X1.25X45)
Replaced By:
88969478
STUD, TRANSFER CASE(M12X1.25X64)
- Require Quantity: 04
- Package Quantity: 1
- Replaced By:
88973023
STUD, TRANSFER CASE(M12X1.25X69)
- Replaced By:

88969235
NUT, Transfer Case, NUT,TRANSFER CASE(M12X1.25)(11MM HIGH)
- Require Quantity: 06
- Package Quantity: 1
- Replaced By:

88969367
SEAL, Transfer Case, SEAL,TRANSFER CASE OIL DRAIN PLUG(*01,KIT1)
- Replaced By:

88969367
SEAL, Transfer Case, SEAL,TRANSFER CASE OIL FILL PLUG(TOP/RH CENTER)(*01,KIT1)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By:

88969476
BOLT, Transfer Case, BOLT,TRANSFER CASE VIBRATION DAMPENER(M8X1.25X25)
- Require Quantity: 03
- Package Quantity: 1
- Replaced By:

BOLT, Transfer Case
88969616
BOLT, TRANSFER CASE BRACE(ENGINE SIDE)(M10X1.25X30)
Require Quantity: 02
Package Quantity: 1
Replaced By:
88975539
BOLT, TRANSFER CASE BRACE(CASE SIDE)(M10X1.25X45)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By:

88969974
BOLT, Transfer Case, BOLT,TRANSFER CASE RING GEAR CARRIER BEARING CAP(PART OF 19)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By:

88969976
PIN, Transmission Case, PIN,TRANS CASE LOCATING
- Require Quantity: 02
- Package Quantity: 1
- Replaced By:

88969980
DEFLECTOR, Transfer Case, DEFLECTOR,TRANSFER CASE VENT OIL
- Replaced By:

88969981
BOLT, Transfer Case, BOLT,TRANSFER CASE VENT OIL DEFLECTOR(M6X1.0X10)
- Replaced By:

88969982
BOLT, Transfer Case, BOLT,TRANSFER CASE RING & PINION ACCESS COVER(M8X1.25X20)(POSITION D/F)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By:

88974711
PIN, Transfer Case, PIN,TRANSFER CASE LOCATING
- Require Quantity: 02
- Package Quantity: 1
- Replaced By:

88975533
CASE, Transfer Case, CASE,TRANSFER(INCLUDES 20-22)(INCLUDES: BEARING CAP,BEARING INSERT, & BOLTS)(NO GASKET-USE SEALANT 89020326 US OR 89021188 CANADA)
- Replaced By:
$500.21 $317.34

88975540
BOLT, Transfer Case, BOLT,TRANSFER CASE(M12X1.25X53)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By:

94140735
PLUG, Transfer Case, PLUG,TRANSFER CASE OIL DRAIN
- Replaced By:

94854092
VENT, Transfer Case, VENT,TRANSFER CASE(10MM DIAMETER, 27MM LONG)
- Replaced By:

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2010 Pontiac Vibe parts. Parts like Transfer Case Cover, Extension & Mounting are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.8L, 4 Cyl 2.4L. Model Code: 4 DOOR AWD, ALL PURPOSE 4 DOOR, FWD GT.
