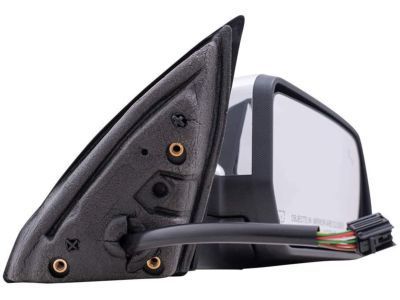

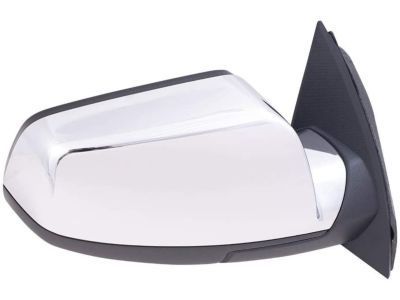

GM 23219862 Mirror Assembly, Outside Rear View *Chrome M

You can Select Your Vehicle to check if 23219862 fits your vehicle.

For outside mirrors,Remove the small interior trim panel that covers the mirror's mounting nuts. On 2010 and later Equinox models, the door panel and door window frame panel must be removed to access the electrical connectors for the mirrors. Remove the small insulator, then disconnect the electrical connector from the back of the mirror. Remove the mirror mounting nuts, then detach it from the vehicle. Installation is the reverse of removal. Inside mirror: Disconnect the electrical connector from the mirror, if equipped. Remove the setscrew located at the base of the mirror stalk. Slide the mirror upwards to remove it from its mount. Remove the mirror set screw, then carefully lift the mirror upwards towards the top of the glass. If the mount plate itself has come off the windshield, adhesive kits are available at auto parts stores to resecure it. Follow the instructions included with the kit. Be sure to position the flanged part of the mount away from the glass and the narrower part pointing up.

If there is a malfunction related to the systems controlled by the BCM, it is recommended to have the vehicle diagnosed by a dealership service department or another qualified automotive repair facility with professional-grade scan tools for accurate troubleshooting.

To remove the small interior trim panel, you need to first remove the mirror's mounting nuts.

If there is a malfunction related to the systems controlled by the BCM, it is recommended to have the vehicle diagnosed by a dealership service department or another qualified automotive repair facility with professional-grade scan tools for accurate troubleshooting.
