How to remove the front Sway Bar Kit and Sway Bar Link on GMC Acadia?

To remove the sway bar kit, start by loosening the front wheel lug nuts and raising the front of the vehicle on jackstands. Remove the front wheels and unbolt the intermediate driveaxle shaft bracket from the subframe. If it's an all-wheel drive model, remove the rear driveshaft. Detach the sway bar link from the strut or bar by holding the ballstud with a wrench and unscrewing the nut. Then, detach the tie-rod ends from the steering knuckle. Support the rear of the subframe with floor jacks and remove the subframe rear reinforcement bolts. Loosen the subframe front reinforcement bolts and the subframe front mounting bolts. Loosen the subframe rear mounting bolts and slowly lower the floor jacks while backing out the rear bolts. Remove the bolts and detach the sway bar kit bushing retainer. Inspect and replace the bushings if necessary. Clean the bushing area of the sway bar kit with a wire brush and lubricate the new bushings with vegetable oil. For installation, reverse the removal steps and tighten the fasteners to the specified torque values. Raise the subframe using floor jacks and tighten the mounting bolts in the proper order. Finally, install the wheels and tighten the lug nuts to the specified torque.

How to remove the rear Sway Bar Kit and Sway Bar Link on GMC Acadia?

To remove and install a sway bar kit on a vehicle, begin by loosening the rear wheel lug nuts and raising the rear of the vehicle on jackstands. Block the front wheels and remove the back wheels. Next, remove the spare tire and the left and right side sway bar link-to-sway bar kit nuts, along with the washers and bushings.

Genuine GMC Acadia Sway Bar Link

Stabilizer Sway Bar Link

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Sway Bar Links found

View related parts

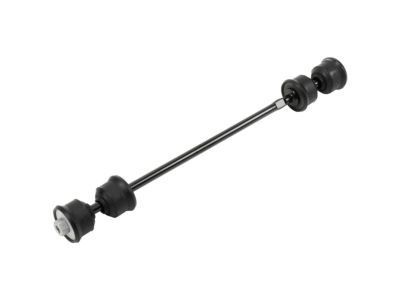

GMC Acadia Link Assembly, Front Stabilizer Shaft
Part Number: 20905104
$43.86 MSRP: $86.23
You Save: $42.37 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: LINK, Stabilizer Shaft; Link, Stabilizer Link
- Position: Front
- Replaces: 15127978, 25981951
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2017 GMC Acadia | SPORT UTILITY VEHICLE 2WD, SPORT UTILITY VEHICLE 4WD, SPORT UTILITY VEHICLE AWD | 6 Cyl 3.6L
View related parts
GMC Acadia Link Assembly, Front Stabilizer Shaft
Part Number: 84108681
$28.37 MSRP: $53.53
You Save: $25.16 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Front Stab Shf; Link, Stabilizer Link
- Position: Front
- Replaces: 23384551
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2023 GMC Acadia | DENALI SUV, SLE SUV, SLE2 & ALL TERRAIN SUV, SLE2 SUV, SLT & ALL TERRAIN SUV, SLT SUV, SLT2 SUV | 4 Cyl 2.0L, 4 Cyl 2.5L, 6 Cyl 3.6L
View related parts
GMC Acadia Link Assembly, Rear Stabilizer Shaft
Part Number: 15129234
$47.31 MSRP: $86.02
You Save: $38.71 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: LINK, Stabilizer Shaft; Link, Stabilizer Link
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2017 GMC Acadia | SPORT UTILITY VEHICLE 2WD, SPORT UTILITY VEHICLE 4WD, SPORT UTILITY VEHICLE AWD | 6 Cyl 3.6L
View related parts
GMC Acadia Link Assembly, Rear Stab Shf
Part Number: 84966811
$25.55 MSRP: $48.21
You Save: $22.66 (47%)
ADD TO CART
Product Specifications
- Other Name: Link, Stabilizer Link
- Position: Rear
- Replaced by: 87848812
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2023 GMC Acadia | DENALI SUV, SLE SUV, SLE2 & ALL TERRAIN SUV, SLE2 SUV, SLT & ALL TERRAIN SUV, SLT SUV, SLT2 SUV | 4 Cyl 2.0L, 4 Cyl 2.5L, 6 Cyl 3.6L

GMC Acadia Sway Bar Link

The Sway Bar Link in GMC Acadia automobile is very essential in controlling the body roll during the cornering as it links the sway bar to the control arm. It links the sway bar to move independent of the inside tire while applying pressure to the other side thus maintaining weight distribution and improving on the handling of the car. The engineering of the Sway Bar Link appears not to have changed much across different Acadia models; major design and operation focus on the transmission of motion from the sway bar to other components such as the suspension. Since it enhances the flow of operations of the suspension system, the Sway Bar Link plays a crucial role in the stability of the automobile and the level of control experienced during cornering.

Each OEM GMC Acadia Sway Bar Link we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

GMC Acadia Sway Bar Link Parts Questions & Experts Answers

Link Assembly, Front Stabilizer Shaft
84108681
Q: How to remove the front Sway Bar Kit and Sway Bar Link on GMC Acadia?
A:
To remove the sway bar kit, start by loosening the front wheel lug nuts and raising the front of the vehicle on jackstands. Remove the front wheels and unbolt the intermediate driveaxle shaft bracket from the subframe. If it's an all-wheel drive model, remove the rear driveshaft. Detach the sway bar link from the strut or bar by holding the ballstud with a wrench and unscrewing the nut. Then, detach the tie-rod ends from the Steering Knuckle. Support the rear of the subframe with floor jacks and remove the subframe rear reinforcement bolts. Loosen the subframe front reinforcement bolts and the subframe front mounting bolts. Loosen the subframe rear mounting bolts and slowly lower the floor jacks while backing out the rear bolts. Remove the bolts and detach the sway bar kit bushing retainer. Inspect and replace the bushings if necessary. Clean the bushing area of the sway bar kit with a wire brush and lubricate the new bushings with vegetable oil. For installation, reverse the removal steps and tighten the fasteners to the specified torque values. Raise the subframe using floor jacks and tighten the mounting bolts in the proper order. Finally, install the wheels and tighten the lug nuts to the specified torque.
Link Assembly, Rear Stabilizer Shaft
15129234
Q: How to remove the rear Sway Bar Kit and Sway Bar Link on GMC Acadia?
A:
To remove and install a sway bar kit on a vehicle, begin by loosening the rear wheel lug nuts and raising the rear of the vehicle on jackstands. Block the front wheels and remove the back wheels. Next, remove the spare tire and the left and right side sway bar link-to-sway bar kit nuts, along with the washers and bushings.
