Engine Assembly-Oil Pump, Pan & Related Parts fit your 2006 Pontiac Grand Prix

Currently shopping for

2006 Pontiac Grand Prix

Change Vehicle

Categories Close X

Currently selected

Engine

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Body Wiring, Roof Trim

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Frames, Springs, Shocks, Bumpers, Fascias

Front End Sheet Metal, Heater

Front Suspension, Steering

Fuel System, Exhaust, Emission System

Interior Trim, Front Seat Trim, Seat Belts

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

How to use OE catalog

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

12616850
SEAL, Engine Oil Pan Drain Plug, SEAL,OIL PAN DRAIN PLUG(O RING)(PART OF 400,403)(DIAMETER 19.39)
$7.89 $4.79
1
Add To Cart

12584922
SEAL, Engine Oil Pump Cover, SEAL,OIL PUMP(O RING)(PART OF 407)(ORANGE)(INSIDE DIAMETER=19.63 T=4.32)(TEFLON COATED)
$12.64 $7.38
1
Add To Cart

89060436
SEAL KIT, Engine Rear Main Bearing, SEAL KIT,CRANKSHAFT REAR OIL(PART OF 518)(REVERSE LIP SEAL,INCLUDE INSTRUCTION SHEET)
$39.93 $24.13
1
Add To Cart

24504031
SEAL, Engine Oil Level, SEAL,OIL LEVEL INDICATOR(O RING)(PART OF 417)(6.07 INSIDE DIAMETER; 1.78 DIAMETER)
$17.88 $10.80
1
Add To Cart

24504031
SEAL, Engine Oil Level, SEAL,OIL LEVEL INDICATOR TUBE(O RING)(PART OF 416)(6.07 INSIDE DIAMETER; 1.78 DIAMETER)
$17.88 $10.80
1
Add To Cart

24504031
SEAL, Engine Oil Level, SEAL,OIL LEVEL INDICATOR(O RING)(PART OF 420)(6.07 INSIDE DIAMETER; 1.78 DIAMETER)
$17.88 $10.80
1
Add To Cart

24504031
SEAL, Engine Oil Level, SEAL,OIL LEVEL INDICATOR(O RING)(PART OF 418)(6.07 INSIDE DIAMETER; 1.78 DIAMETER)
$17.88 $10.80
1
Add To Cart

12378521
SEALANT, Maintenance Products, SEALANT,ROOM TEMPERATURE VULCANIZING ENGINE SILICONE 5.3OZ CART(OIL PAN)

12603782
SWITCH, Engine Oil Level, SWITCH,ENGINE OIL LEVEL INDICATOR(INCLUDES 715)(STRAIGHT ELECTRODE CONNECT)(MATING CONNECT W/LEADS USE 12102747)
$47.81 $28.89
1
Add To Cart

12581570
GASKET, Engine Oil Pump Inlet, GASKET,OIL PUMP SCREEN(SUCTION PIPE FLANGE)
$15.83 $9.92
10
Add To Cart

12556582
SPROCKET, Engine Crankshaft/Timing, SPROCKET,CRANKSHAFT
$52.83 $31.92
1
Add To Cart

10151633
SEAL, Engine Oil Level, SEAL,ENGINE OIL LEVEL SENSOR(PART OF 714)
$6.09 $3.82
5
Add To Cart

11562588
PLUG, Engine Oil Pan Drain, PLUG,OIL PAN DRAIN(INCLUDES 404)(PART OF 400)(M12X1.75X25)(W/SEAL)(EXCEPT MAGNET)(W/HEXAGON HEAD)
$12.65 $7.63
10
Add To Cart

11562588
PLUG, Engine Oil Pan Drain, PLUG,OIL PAN DRAIN(PART OF 400)(INCLUDES 429)(M12X1.75X25)(W/SEAL)(EXCEPT MAGNET)(W/HEXAGON HEAD)
$12.65 $7.63
10
Add To Cart

12574823
INDICATOR, Engine Oil Level, INDICATOR,OIL LEVEL(INCLUDES 422)
$30.73 $18.56
1
Add To Cart

12643081
GASKET, Engine Oil Pan, GASKET,OIL PAN(PART OF 400)
$25.42 $15.36
1
Add To Cart

24505433
GEAR SET, Engine Oil Pump, GEAR SET,OIL PUMP
$28.96 $21.07
1
Add To Cart

25014612
VALVE, Engine Oil Filter, VALVE,OIL FILTER BYPASS(PART OF 411)(W/O VAPOR SEPARATOR)(OPENING PRESSURE 21 PSI NOMINAL)(PART HAS A 16.10MM MAX OUTSIDE DIAMETER & FITS A 15.84 HOLE IN BLOCK)
$10.08 $5.34
1
Add To Cart

25534742
GASKET, Engine Oil Filter, GASKET,OIL FILTER ADAPTER
$31.65 $19.84
5
Add To Cart

12552357
FITTING, Engine Oil Filter, FITTING,OIL FILTER(PART OF 400)(13/16 X 16 UNC-M20X1.5 SAE 12L14)
$16.83 $10.69

12597920
VALVE, Engine Oil Pressure, VALVE,OIL PRESSURE RELIEF(PART OF 400)
$33.24 $21.13

12586624
GASKET, Engine Oil Pan, GASKET,OIL PAN COVER(PART OF 400)
$17.96 $10.85
1
Add To Cart

12569219
ADAPTER, Engine Oil Filter, ADAPTER,OIL FILTER(W/BYPASS VALVE)(INCLUDES 409,410)
$106.36 $67.60

12569046
TUBE, Engine Oil Level, TUBE,OIL LEVEL INDICATOR(INCLUDES 421)(INCLUDES TUBE,SEAL)

12594652
SCREEN, Engine Oil Pump, SCREEN,OIL PUMP(W/SUCTION PIPE)(INCLUDES 406)

24508129
TUBE, Engine Oil Level, TUBE,OIL LEVEL INDICATOR(INCLUDES 419)(ATTACHES TO RH SIDE EXHAUST STUD)

25521935
COVER, Engine Oil Pump, COVER,OIL PUMP

11588949
PLUG, Engine Oil Distribution, PLUG, M16X1.5X14, 24 OUTSIDE DIAMETER, SAE 1010 STEEL, GMW3044, W/ ALUMINUM WASHER(ENGINE BLOCK OIL GALLERY)(8.973)
- Require Quantity: 02
- Package Quantity: 1
$15.24 $9.55
1
Add To Cart

11610052
BOLT, Plug Threaded, BOLT - OIL PAN 1/4-20 UNC-2A GM280M STEEL GMW3359(OIL PAN)(1.428)
- Require Quantity: 20
- Package Quantity: 1
$9.79 $6.22
1
Add To Cart

12587003
GASKET, Engine Front Cover, GASKET,ENGINE FRONT COVER
- Replaced By: 12731121
$15.80 $9.91
1
Add To Cart

12603780
SENSOR, Engine Oil Level, SENSOR,ENGINE OIL LEVEL & TEMPERATURE(INCLUDES 728)(PART OF 400)
$43.71 $26.40
1
Add To Cart

1262505
SPRING, Engine Oil Pressure, SPRING,OIL PRESSURE RELIEF VALVE
$1.33 $0.85

24505205
BOLT, Engine Oil Pan, BOLT,OIL PAN(PART OF 400)
- Require Quantity: 02
- Package Quantity: 1

24506437
SCREEN, Engine Oil Pump, SCREEN,OIL PUMP(W/SUCTION PIPE)

12575008
SWITCH, Engine Oil Pressure/Temperature, SWITCH,ENGINE OIL PRESSURE INDICATOR
- Replaced By: 19436257
$61.39 $37.09
1
Add To Cart

12639250

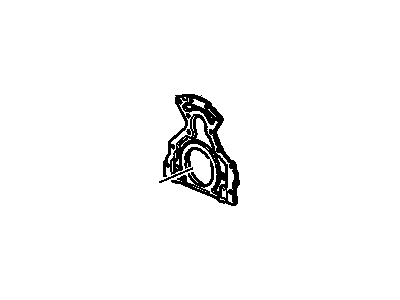

HOUSING, Engine Rear Main Bearing, HOUSING,CRANKSHAFT REAR OIL SEAL(INCLUDES 141,517,519)
$100.57 $58.30
1
Add To Cart

12684294
VALVE, Engine Oil Filter, VALVE,OIL FILTER BYPASS(PART OF 400)
$11.20 $5.94
1
Add To Cart

12693523
PUMP, Engine Oil Pump, PUMP,OIL(INCLUDES 408,409,412,414-416)
$181.73 $75.05
1
Add To Cart

12731172
FILTER, Engine Oil Filter, FILTER,OIL(DURAGUARD)
$9.56 $5.07
1
Add To Cart

24504713
BOLT, Engine Oil Filter, BOLT,OIL FILTER ADAPTER(5/16-18 UNC-2AX1.50)(0.206)
- Require Quantity: 04
- Package Quantity: 10
$16.46 $10.46
10
Add To Cart

25519242
BOLT, Engine Oil Pump, BOLT,OIL PUMP COVER(1/4-20X.88)
- Require Quantity: 05
- Package Quantity: 1
$1.75 $1.12
1
Add To Cart

12569042

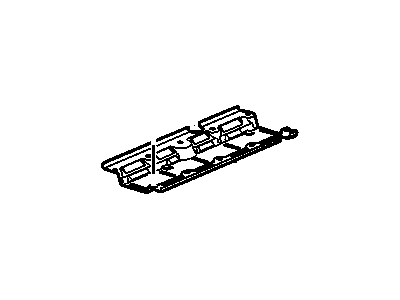

DEFLECTOR, Engine Oil Pan, DEFLECTOR,CRANKSHAFT OIL

12569045
INDICATOR, Engine Oil Level, INDICATOR,OIL LEVEL(INCLUDES 417)

12586623
COVER, Engine Oil, COVER,OIL PAN(PART OF 400)

PAN, Engine Oil
12597244
PAN, OIL(INCLUDES 403,404,900,901)(NO GASKET REQUIRED)(USE TOGETHER WITH ROOM TEMPERATURE VULCANIZING SEALER)
Fitting Vehicle Options: W(L32), W(L26)
12599654
PAN, OIL(INCLUDES 426,429,430,433,434,436,438,439,446,453,455,727,728)
- Fitting Vehicle Options: W(LS4,MN7)

12731175
FILTER, Engine Oil Filter, FILTER,OIL(DURAGUARD)
$8.76 $4.88

24505570
BOLT, Engine Oil Pump, BOLT,OIL PUMP SCREEN(HEX FLANGED HEAD 1/4-20 X .80")(W/.09 DOG POINT,.61 THREAD,.44 OUTSIDE DIAMETER,300M,7114M)
- Require Quantity: 02
- Package Quantity: 1
$9.14 $5.81

25530949
VALVE, Engine Oil Pressure, VALVE,OIL PRESSURE RELIEF

11588714
BOLT, HEX FLANGED HEAD,M6X1X30,22.7 THREAD,14.2 OUTSIDE DIAMETER,8.8,GMW3359, M-POINT.(PART OF 400)
- Require Quantity: 02
- Package Quantity: 1
$10.43 $6.63
1
Add To Cart

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2006 Pontiac Grand Prix parts. Parts like Engine Assembly-Oil Pump, Pan & Related Parts are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.8L, 8 Cyl 5.3L. Model Code: 4 DOOR, GT 4 DOOR, GTP 4 DOOR, GXP 4 DOOR.
