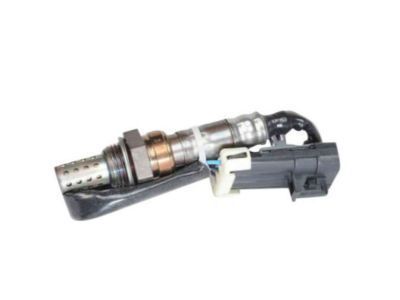

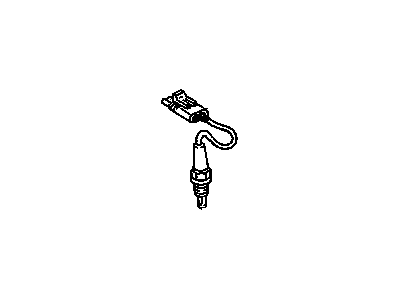

GM 19178938 Sensor Asm,Heated Oxygen

You can Select Your Vehicle to check if 19178938 fits your vehicle.

Voltmeter tests should indicate 400-450 millivolts with the ignition on. A warmed-up engine should display voltage ranging from 100 to 900 millivolts for pre-converter sensors. Post-converter sensors should also show voltage within this range but not actively switching.

An oxygen sensor plays a crucial role in measuring the remaining oxygen in exhaust gas post-combustion, generating a voltage output ranging from 0.1 volt (indicating high oxygen, lean mixture) to 0.9 volts (indicating low oxygen, rich mixture). In early models (1988-1995), a single-wire oxygen sensor is positioned in the exhaust pipe after the exhaust manifold. Late models (1996-2000) employ four oxygen sensors, with two pre-converter oxygen sensors before the catalytic converter. The PCM continuously monitors the voltage from the pre-converter oxygen sensor to regulate fuel injector pulse width, maintaining an air/fuel ratio of 14.7:1, optimizing emissions and performance. The post-converter oxygen sensor, though identical in operation, does not affect air/fuel ratio control but is used to assess catalytic converter efficiency, displaying slower fluctuating voltage signals indicating lower oxygen levels post-catalyst. Oxygen sensors require an operating temperature of around 600°F; below this, during warm-up, the ECM/PCM operates in open-loop mode, not using the sensor's feedback. Heating elements in the sensors aid in reaching operating temperature swiftly. Proper sensor operation depends on electrical connections, adequate air supply, proper temperature, and the use of unleaded fuel. The ECM/PCM can detect oxygen sensor issues, setting diagnostic trouble codes. Testing should be carried out with caution, disconnecting the sensor and using jumper wires or backprobing to prevent damage, albeit triggering a diagnostic trouble code. Voltmeter tests should indicate 400-450 millivolts with the ignition on and a warmed-up engine should display voltage ranging from 100 to 900 millivolts for pre-converter sensors, while post-converter sensors should also show voltage within this range, though not actively switching. Late models' oxygen sensor heater circuits should register approximately 12 volts with the ignition on, and heater resistance should be 3.0 to 14.0 ohms. Replacement of oxygen sensors should be done with care, avoiding damage to the pigtail and electrical connector, preventing contaminants from affecting the sensor, refraining from using cleaning solvents, and handling the sensor gently. Starting the engine briefly before replacement can ease removal. When replacing a post-converter sensor, ensure the vehicle is securely raised, disconnect the electrical connector, unscrew the sensor using the appropriate tool, apply anti-seize compound to the threads, and secure it while reattaching the electrical connector before lowering the vehicle.
