Genuine Saturn Vue Starter

Saturn Vue Starter Parts Questions & Answers

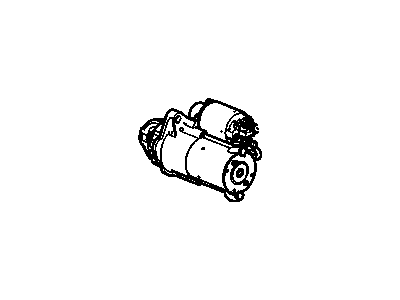

• Starter Asm,(Remanufacture)(Pg260D)
  89018113
  Q: How to remove and install a starter on a Saturn Vue?

  A: Remove the cable from the battery's negative terminal. Lift and support the vehicle on jackstands for four-cylinder and 3.0L V6 models. Disconnect all the wiring from the starter. It disconnects with both batteries and starter solenoid wiring. On 3.5L V6 models, pull back the rubber boot until an electrical connector can be pulled off, then remove nut, pull back rubber boot, and remove starter cable. Remove any brackets that are in your way, undo the starter mounting bolts, and take out the starter. This is inclusive of both upper as well as lower mounting bolts of a 3.5L V6 model starter unit. Move it around to clear the block and bellhousing then pull it out. Failure to follow these cautions may result in damage to your equipment or injury to yourself or others. Install by reversing the procedure described above. Refit all components removed during dismantling.
• Starter Asm,(Remanufacture)
  12593701
  Q: How to check and troubleshoot starter and starting circuit malfunction?

  A: To troubleshoot a starting circuit malfunction, check the cleanliness and tightness of the Battery Cable connections, inspect the condition of the battery cables and replace any faulty ones, test the battery's condition, examine the starter solenoid wiring and connections using wiring diagrams, ensure that the starter mounting bolts are secure, inspect for any burnt engine compartment fuses while addressing the ignition switch circuit, verify gear position switch or clutch start circuit operation and if necessary test starter cut relay. In case the starter does not engage when turning on the ignition switch to start position, measure voltage at "S" terminal of starter solenoid comparing with battery voltage and consult wiring diagrams to check starting system fuses and starter relay. If your slow turning starter is evaluated, it should also evaluate cranking voltage and current draw as well as ensuring that battery meets specifications because clean terminals and clean cables. Finally, if you have voltage to the starter but it doesn't turn over check for bad ring gears by removing and bench testing a Starter/Solenoid assembly being sure to watch for solenoid operation as well as motor operation.
